Program overview
Get to know this learning path.
MOBILE PHONE REPAIR · TECHNICAL TRAININGAndroid Motherboard Chip-Level Repair
Master the advanced skills required to diagnose and repair complex Android smartphone motherboard faults with our Android Motherboard Chip-Level Repair training program. Learn how to identify damaged components, trace circuit faults, diagnose short circuits, perform precision micro-soldering, and repair motherboard-level hardware problems.
Read moreRead less
This practical, technician-focused program introduces learners to motherboard architecture, schematic and board-view analysis, power and charging circuits, CPU/RAM/storage sections, RF circuits, and advanced testing techniques.
Through supervised hands-on practice, learners develop the confidence to troubleshoot difficult mobile hardware problems that cannot be resolved through ordinary parts replacement.
Precision Micro-Soldering
Practise component removal, replacement, jumper work, and pad repair.
Real-World Fault Repair
Work on dead-boot, charging, power, water-damage, and network-related faults.
Program Highlights
- Training approach: Practical, hands-on, fault-based learning.
- Core specialisations: Android motherboard repair, BGA rework, and circuit-level troubleshooting.
- Target learners: Mobile repair technicians, service professionals, repair shop owners, and aspiring chip-level technicians.
Curriculum Preview
The curriculum is structured around the major diagnostic and repair areas shown in the course poster.

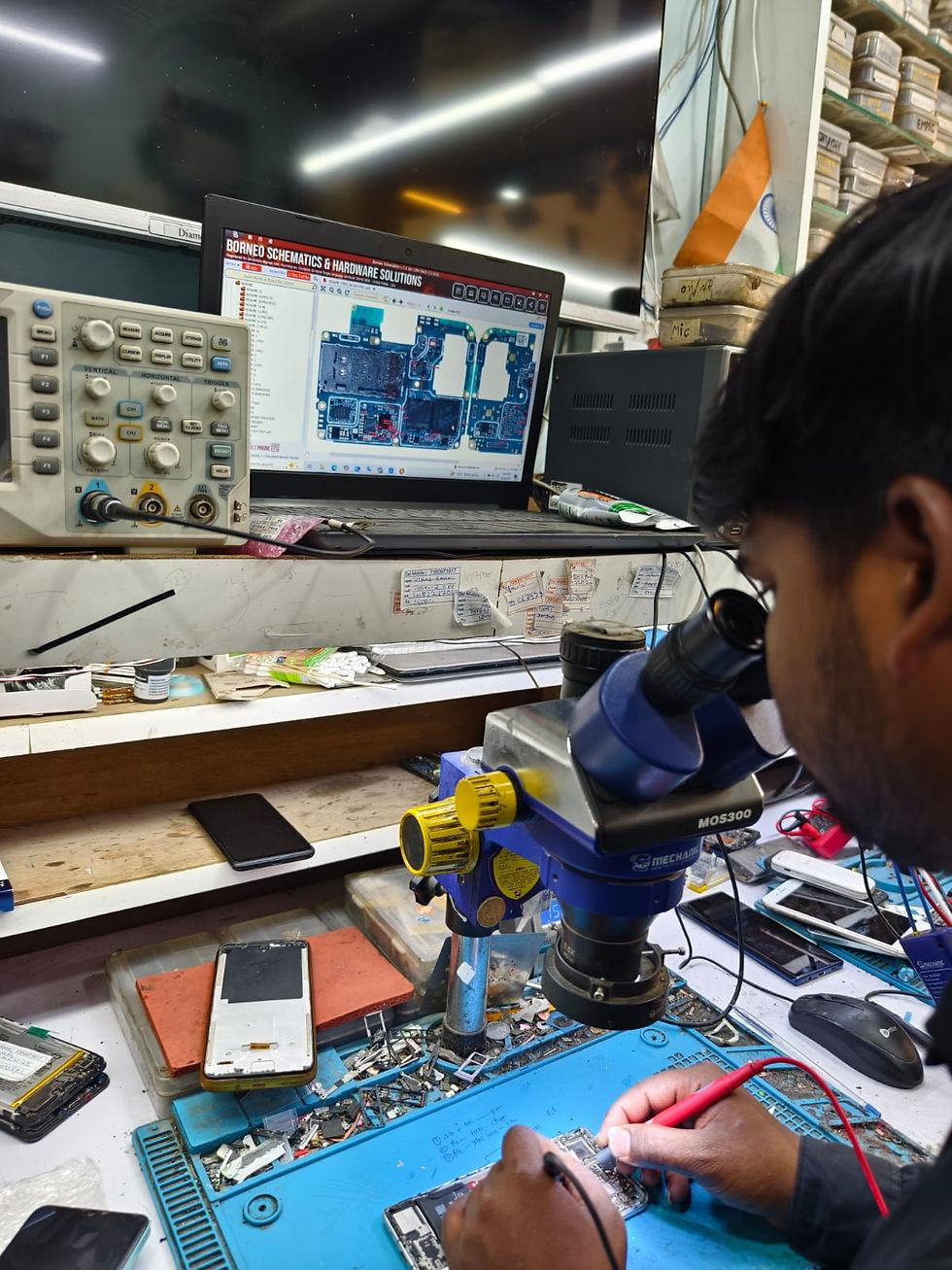

01Module 1: Motherboard FundamentalsLearning topics
- Android motherboard architecture and circuit identification
- Schematic and board-view analysis
- Component identification and circuit symbols
- Voltage, resistance, and continuity testing
- Diode-mode analysis and basic fault isolation

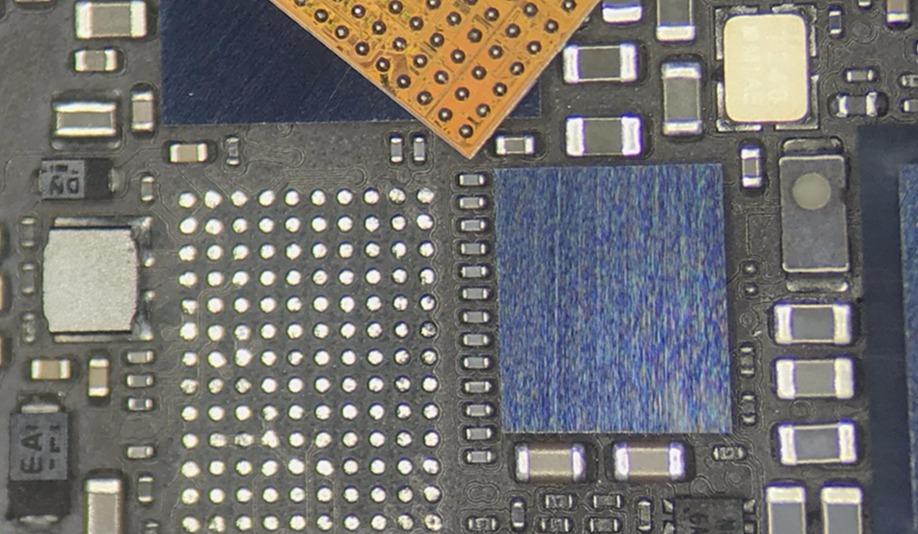

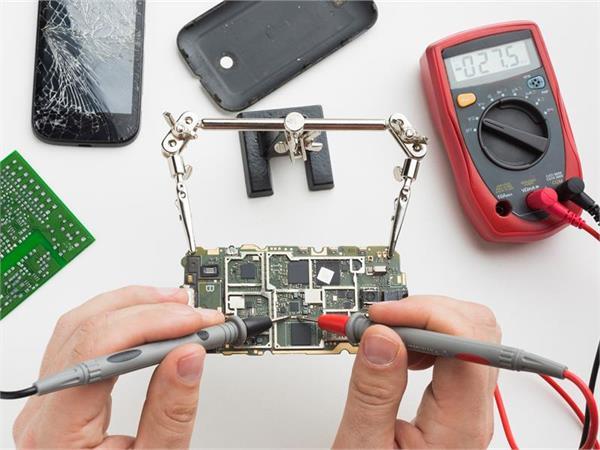

02Module 2: Advanced Diagnosis and TestingLearning topics
- Short-circuit detection and troubleshooting
- DC power supply testing and current-consumption analysis
- Oscilloscope and digital storage oscilloscope (DSO) analysis
- UART (TX/RX) tracing
- I²C, SPI, and related communication protocols

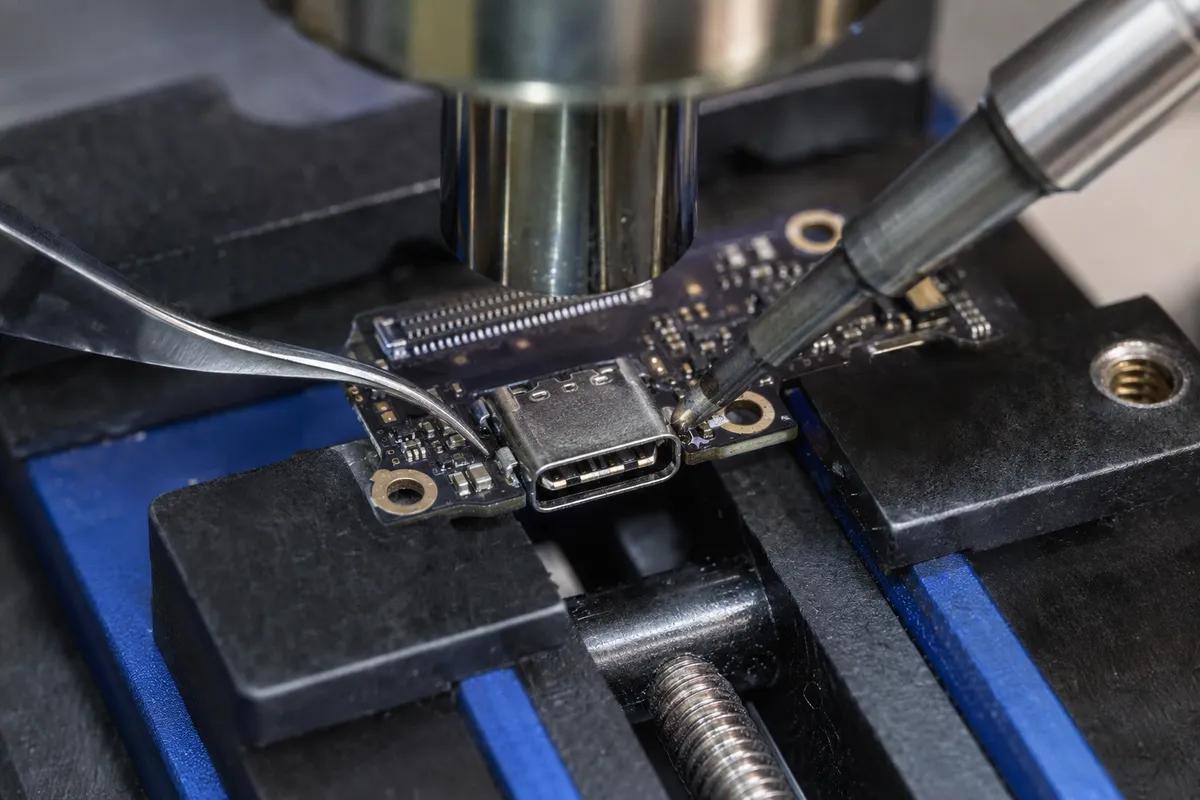

03Module 3: Power and Charging CircuitsLearning topics
- Power-on sequence and power-section diagnosis
- USB Type-C charging circuit troubleshooting
- PMIC and power-management circuits
- Charging-path and connector faults
- Battery-related power issues and rail testing

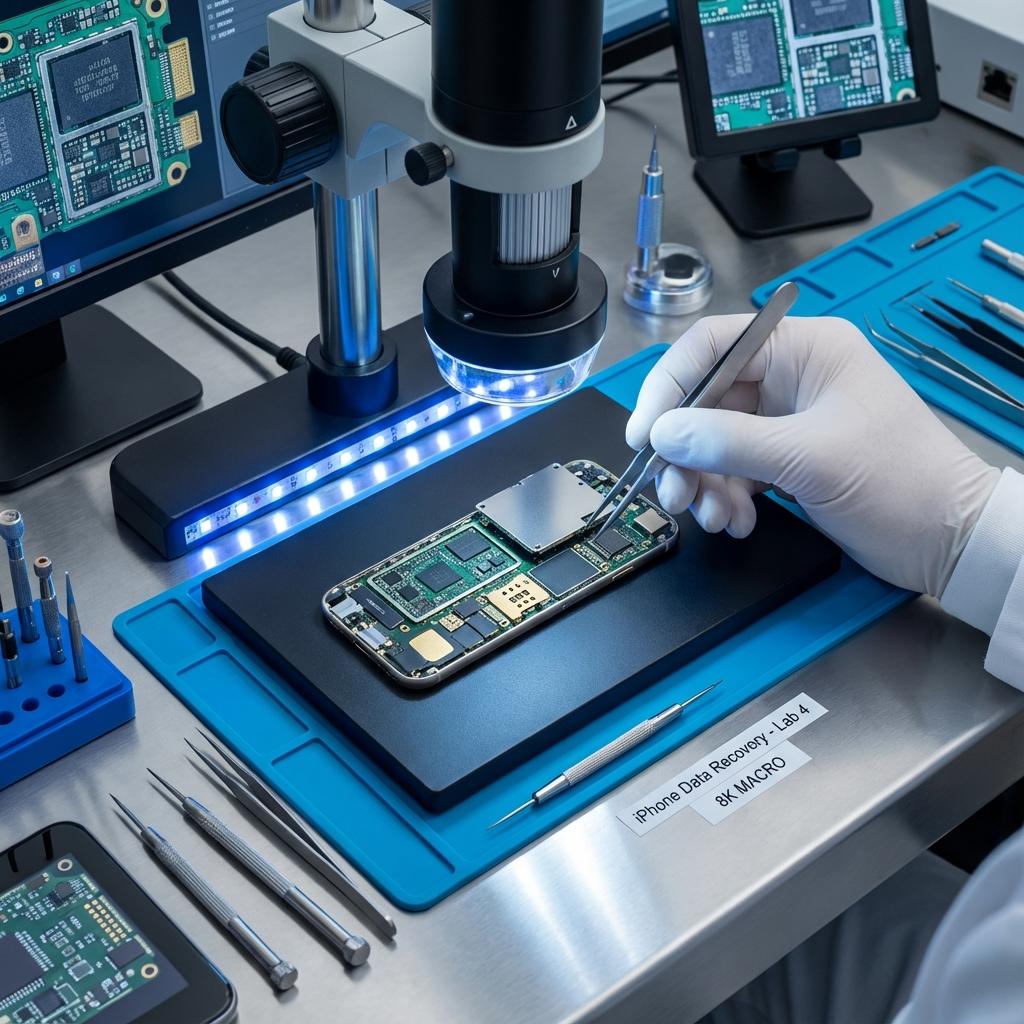

04Module 4: CPU, RAM, Storage and BGALearning topics
- CPU, RAM, and storage circuit fundamentals
- UFS/eMMC storage diagnosis
- BGA chip removal and reballing
- BGA alignment, rework, and soldering principles
- Safe handling of heat-sensitive components

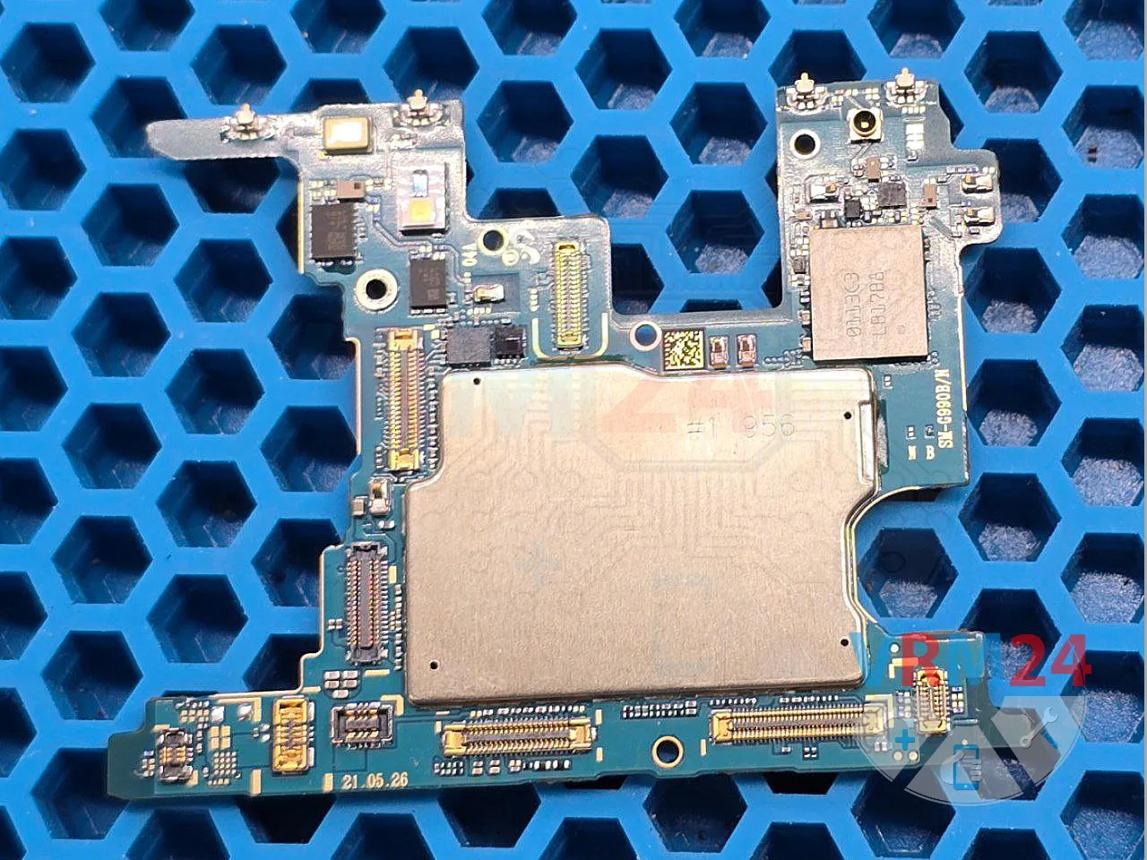

05Module 5: RF, Connectivity and Signal CircuitsLearning topics
- RF and antenna-path troubleshooting
- 2G/3G/4G/5G circuit fundamentals
- Wi-Fi, Bluetooth, GPS, and NFC fault diagnosis
- Network and signal-related hardware checks

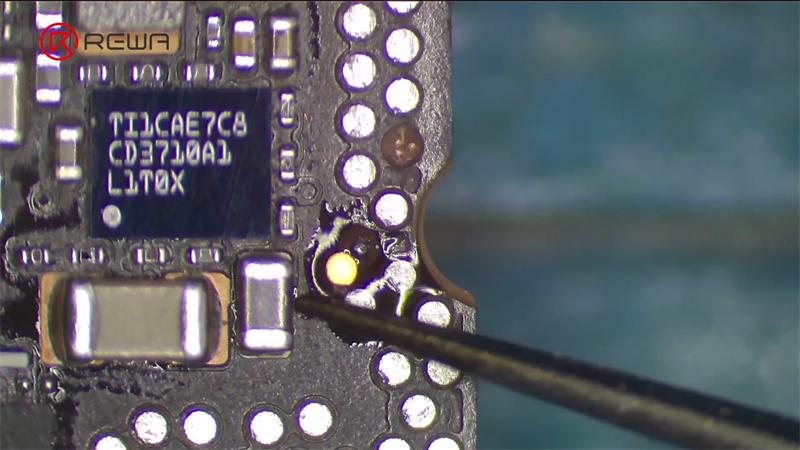

06Module 6: Precision Repair and VerificationLearning topics
- Micro-jumper and damaged-track repair
- Solder-pad recovery and component replacement
- Dead-boot and water-damage diagnosis
- Post-repair boot, charging, and connectivity testing
- Final functional verification and quality checks
Curriculum note: The final module sequence and availability of specific advanced procedures should be confirmed against the institute's actual training plan.
Mobile Brands
Brand reference gallery for mobile repair learning.

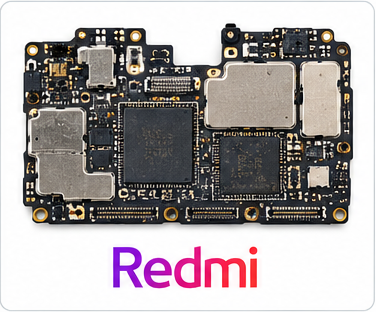

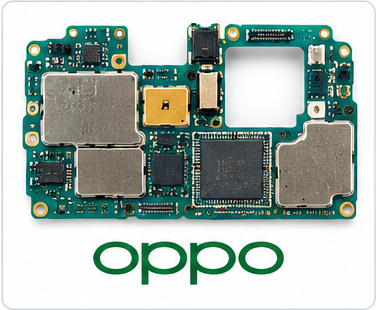

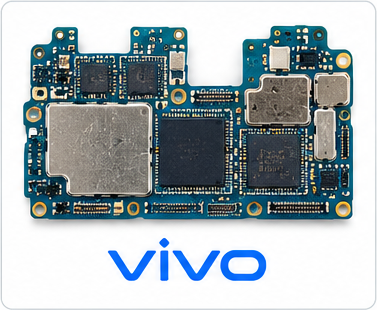

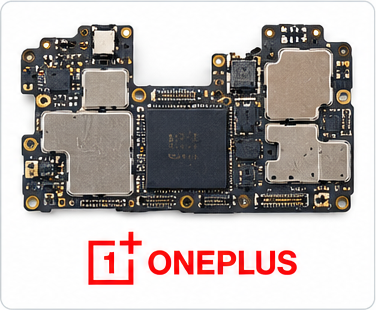

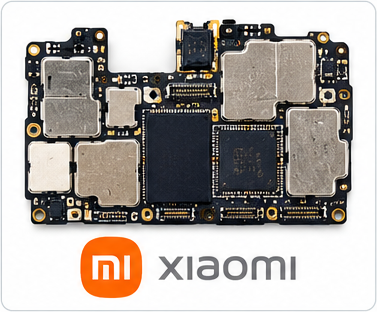

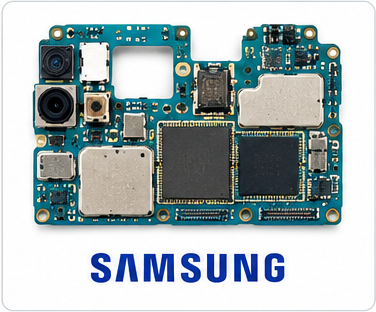

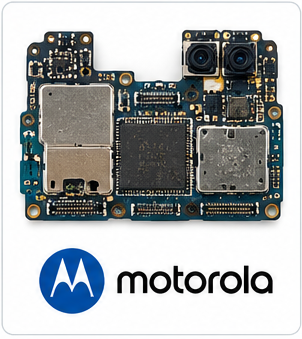

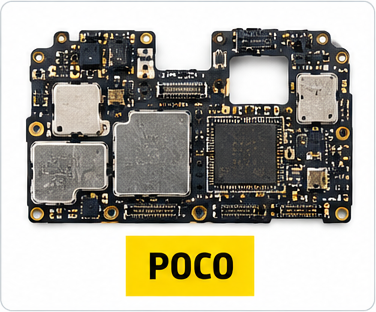

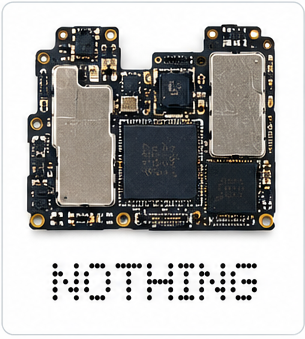

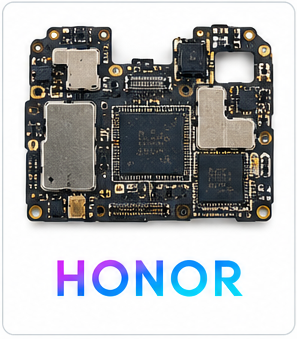

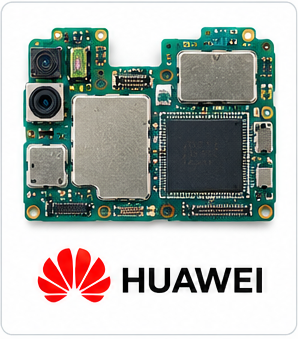

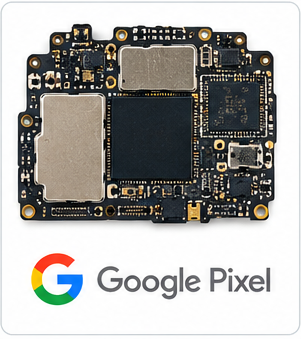

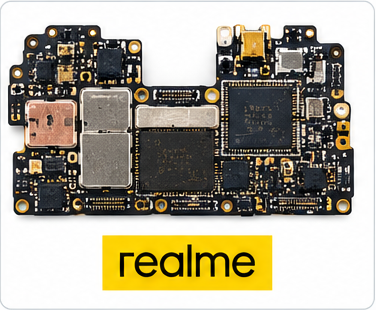

Android Motherboard References
Explore motherboard reference images, organised by brand.
Motherboard layouts and components vary by device model.
Tools & Technologies
Learn to use professional mobile motherboard repair equipment for precision diagnosis, component-level repair, and post-repair testing. The equipment below follows the tools featured in the course poster, with additional supporting equipment relevant to advanced practical training.
Equipment and reference images illustrate compatible servicing and repair processes. Confirm the actual workshop equipment, model compatibility and supervised training available with the institute.
01
Professional Motherboard Repair Equipment

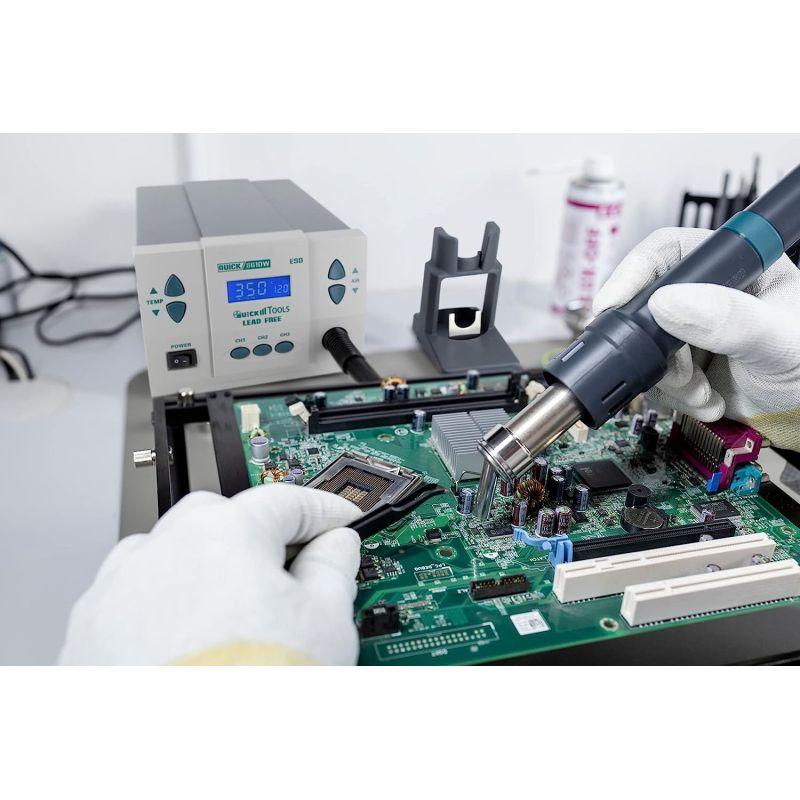

01SMD Hot-Air Rework Station
Used for controlled heating, removing and replacing surface-mount components, and supporting IC rework.
Technology: Key skills: temperature control, airflow adjustment, component removal, and safe PCB handling.

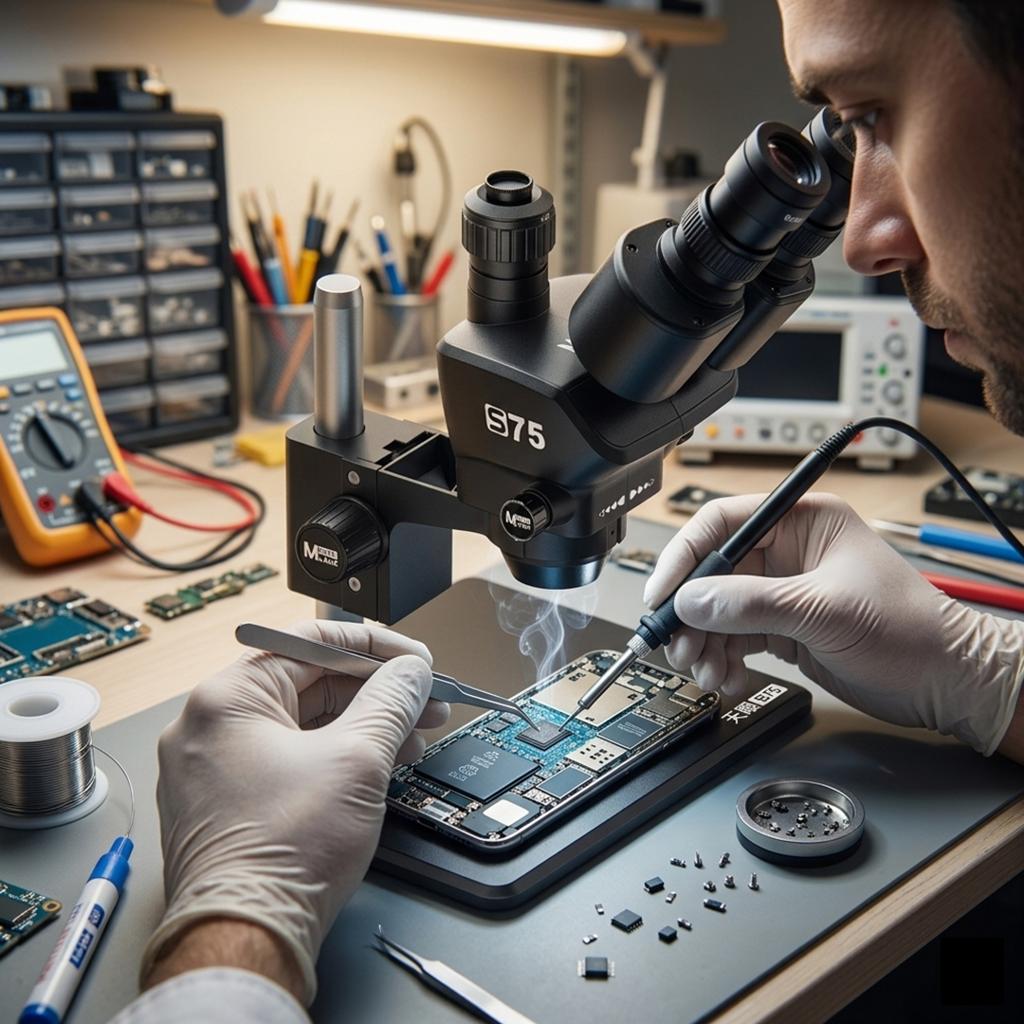

02Professional Stereo Microscope
Provides magnified visibility of fine-pitch components, solder joints, tracks, pads, and microscopic circuit damage.
Technology: Key skills: inspection, precision soldering, and post-repair quality checks.

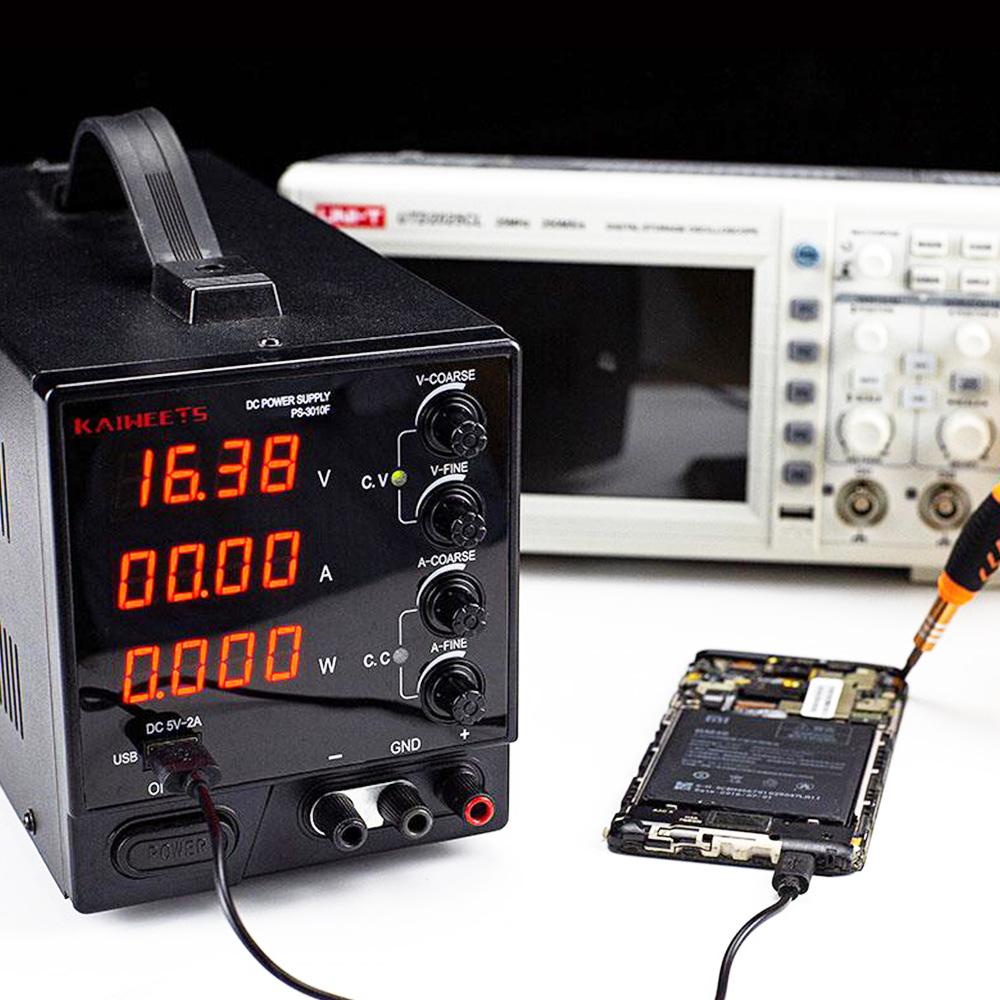

03DC Power Supply
Helps assess current consumption and investigate power-related faults in mobile motherboards.
Technology: Key skills: current analysis, power-on diagnosis, and controlled fault investigation.

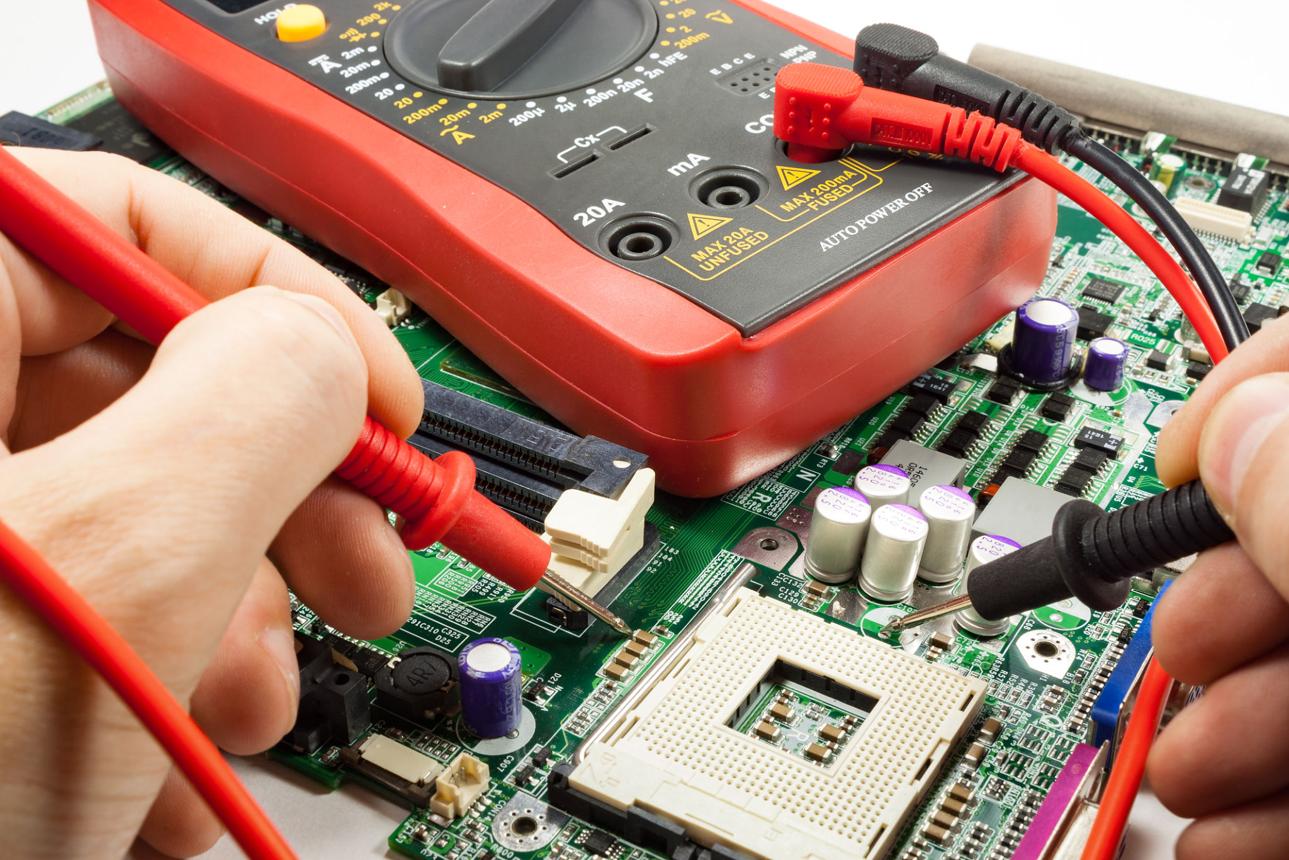

04Digital Multimeter
Essential for measuring voltage, resistance, continuity, and diode readings across motherboard circuits.
Technology: Key skills: rail testing, component checks, and short-circuit diagnosis.

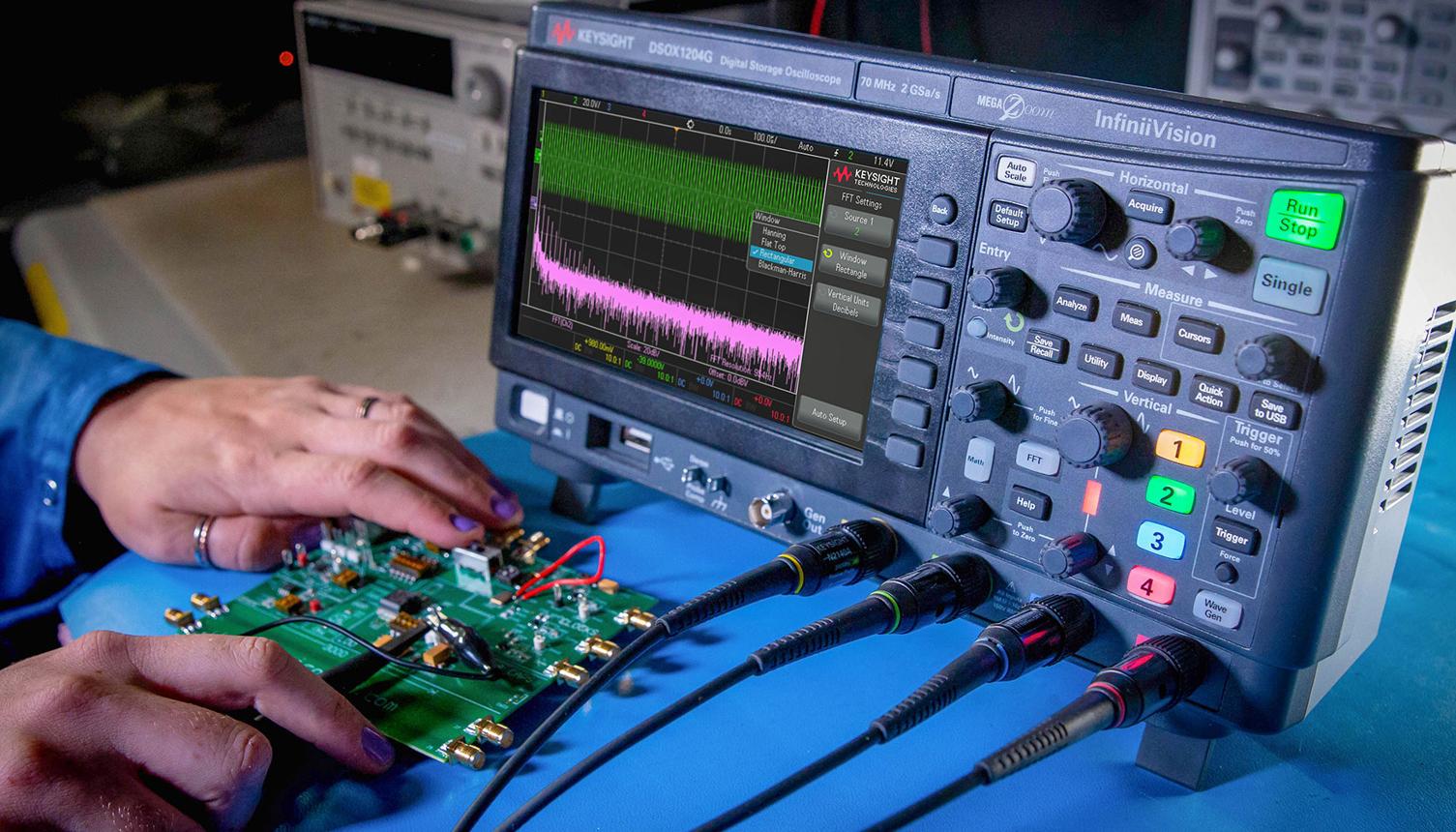

05Oscilloscope / DSO
Supports waveform analysis and investigation of selected clock, signal, and communication-related faults.
Technology: Key skills: signal observation, waveform interpretation, and advanced diagnostics.

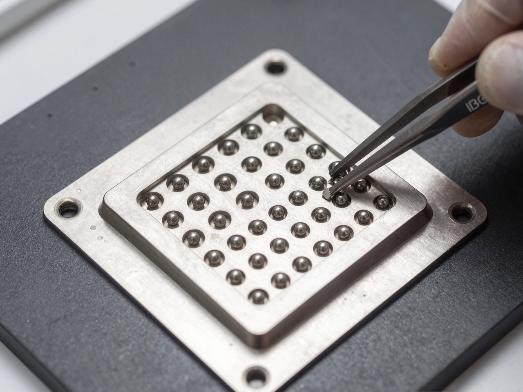

06BGA Stencils and Reballing Tools
Used to prepare compatible BGA packages for reballing and controlled chip replacement.
Technology: Key skills: solder-ball placement, pad preparation, alignment, and rework inspection.

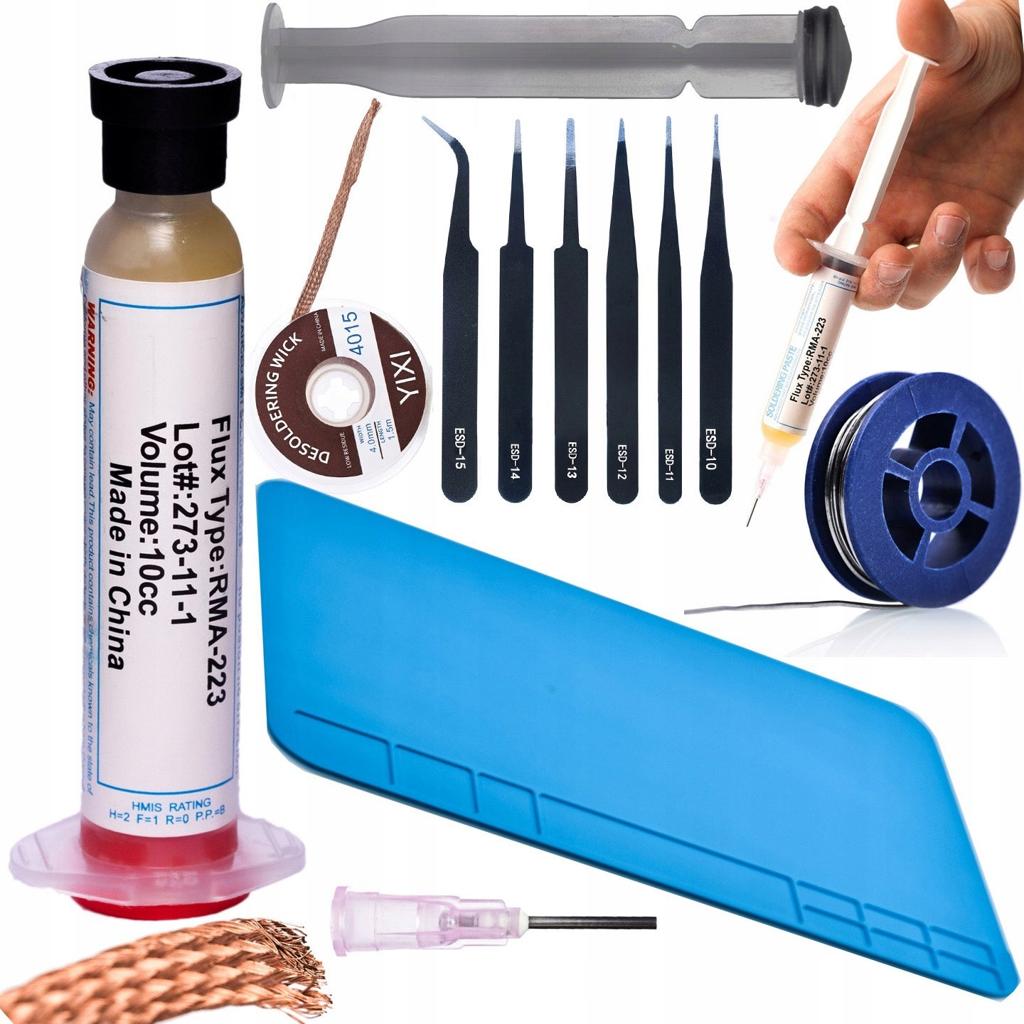

07Precision Soldering Tools
Fine-tip soldering irons, precision tweezers, flux, solder wire, desoldering braid, and micro-jumper wire support detailed circuit repair.
Technology: Key skills: SMD replacement, jumper repair, pad recovery, and track restoration.

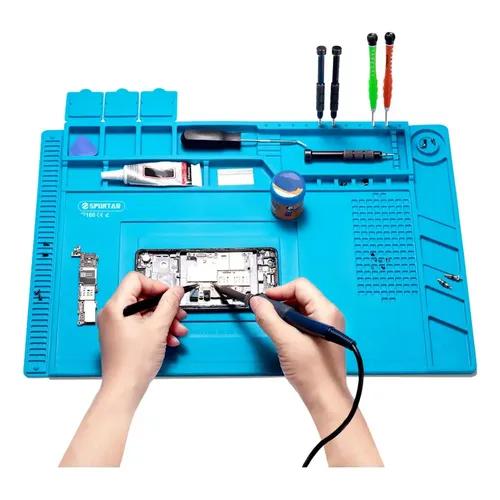

08PCB Holder and ESD Protection
Provides stable board positioning and protection against electrostatic discharge during sensitive electronics work.
Technology: Equipment: PCB holder, ESD mat, grounding wrist strap, and suitable fume extraction.

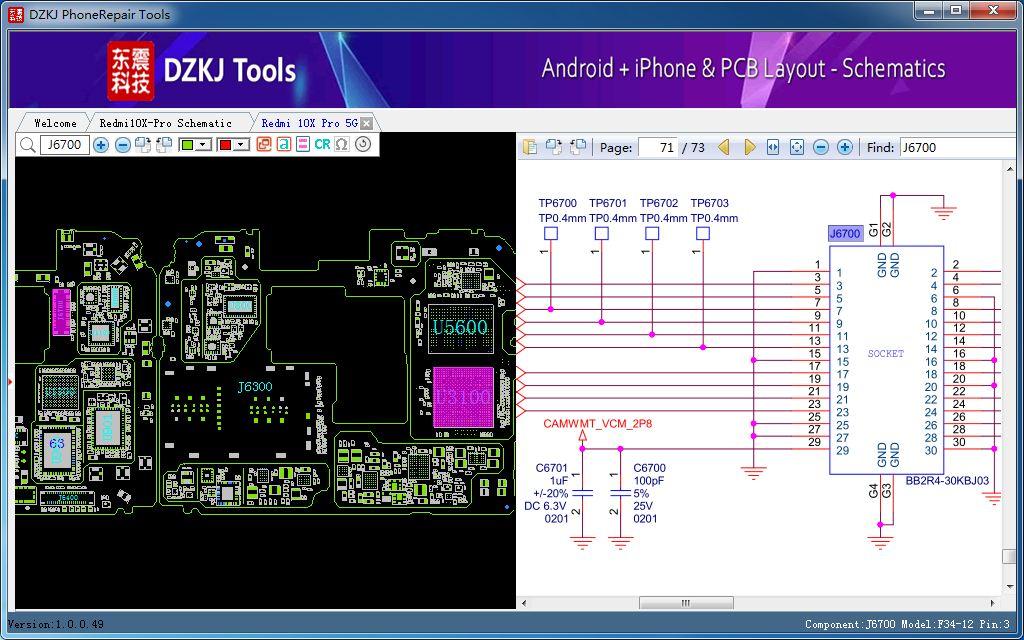

09Schematic and Board-View Tools
Help technicians trace circuit connections, locate components, identify test points, and understand motherboard layouts.
Technology: Key skills: circuit tracing, component mapping, and systematic fault isolation.
02
Supporting Equipment and Consumables

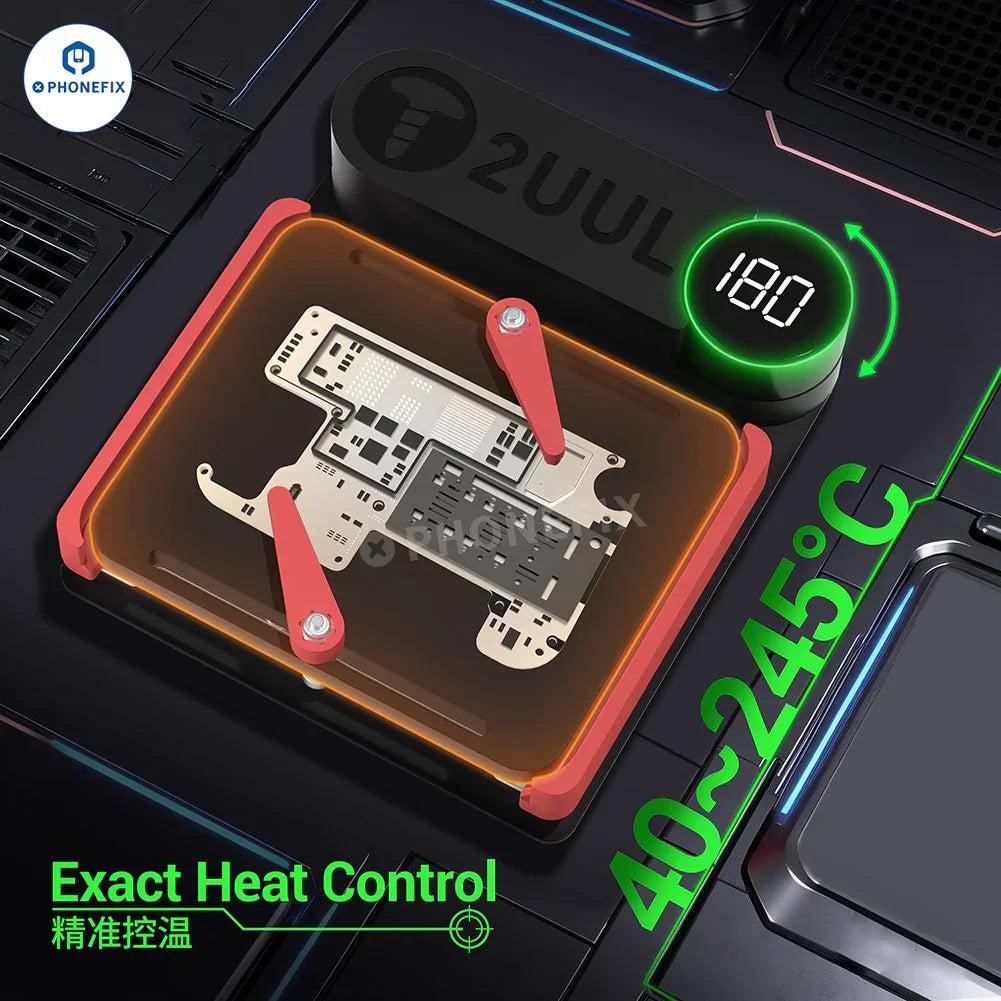

01PCB Preheater
Supports controlled board heating during suitable advanced rework procedures.

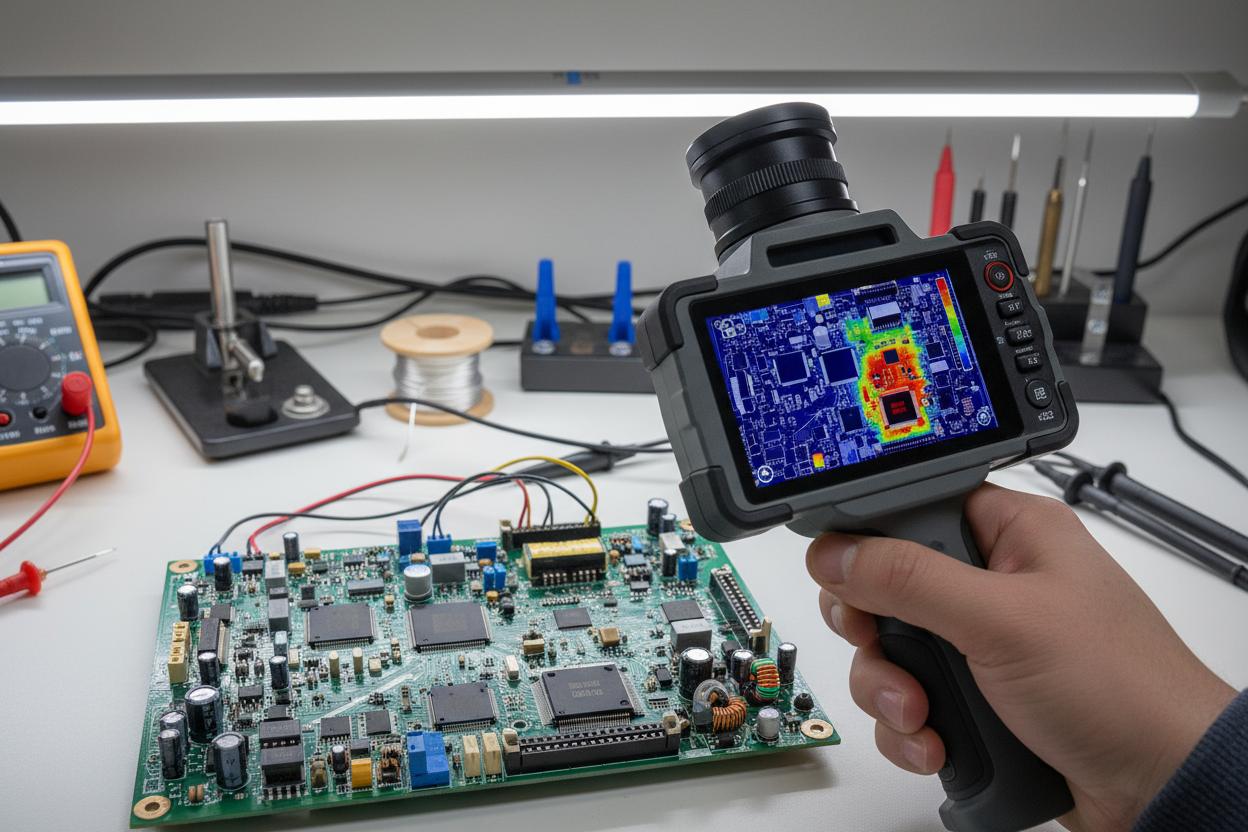

02Thermal Inspection Equipment
Helps identify abnormal heating associated with selected circuit faults.

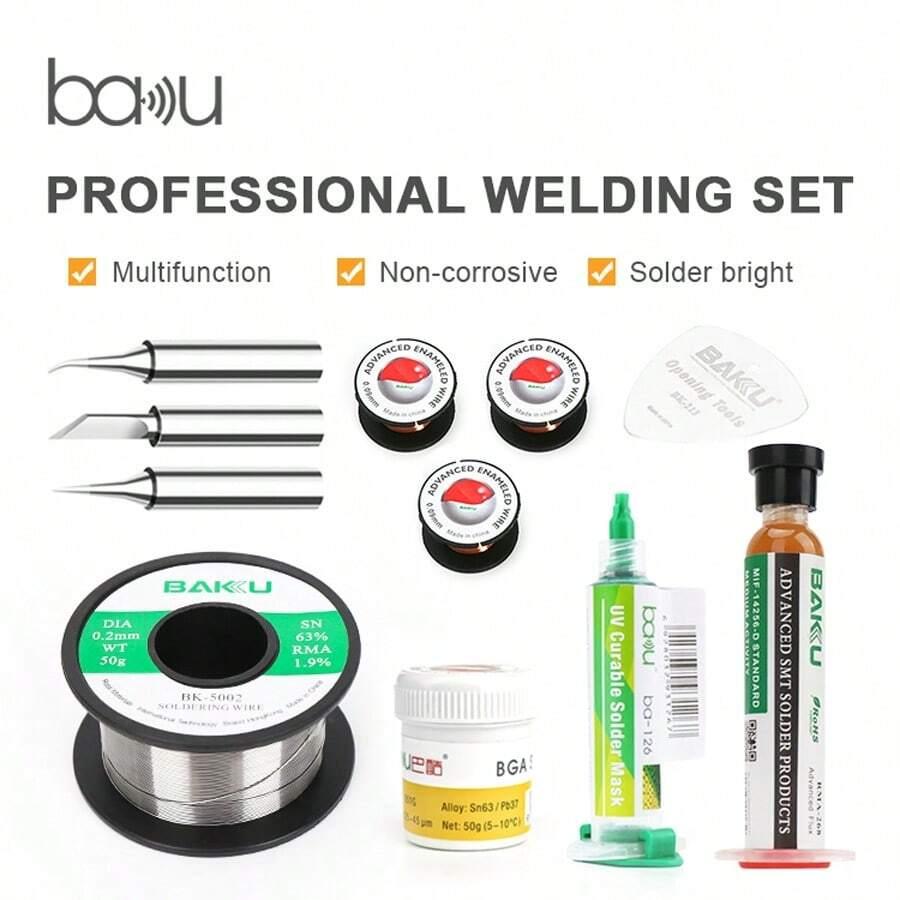

03Repair Consumables
Flux, solder paste, solder wire, desoldering braid, jumper wire, and suitable PCB cleaning materials.
OCA film is distinct from UV-curing LOCA adhesive. Follow equipment instructions and supervised safety procedures.
Projects & Practical Work
Apply workshop skills through guided practice projects.
Build hands-on experience by diagnosing faulty boards, identifying root causes, performing appropriate repairs, and verifying results.
PRACTICAL TASK 01

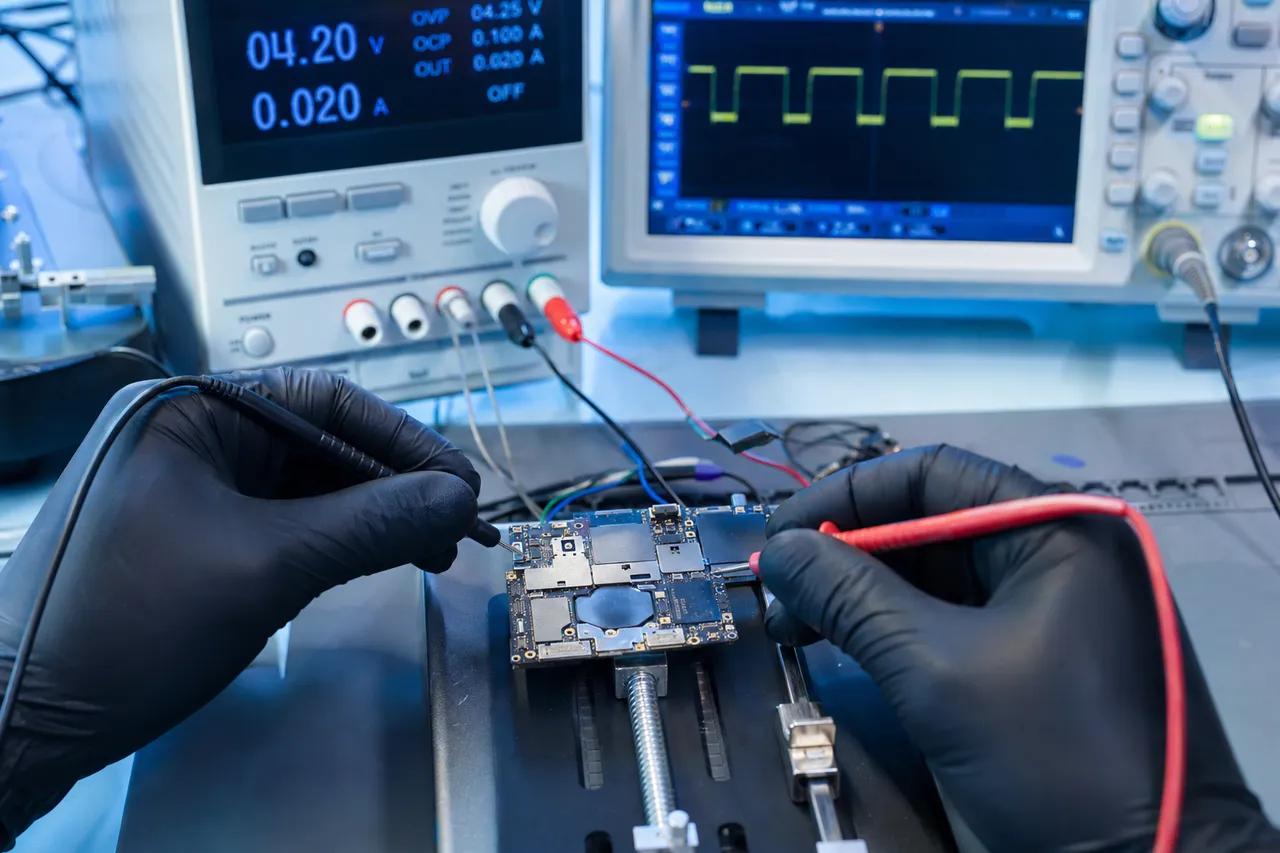

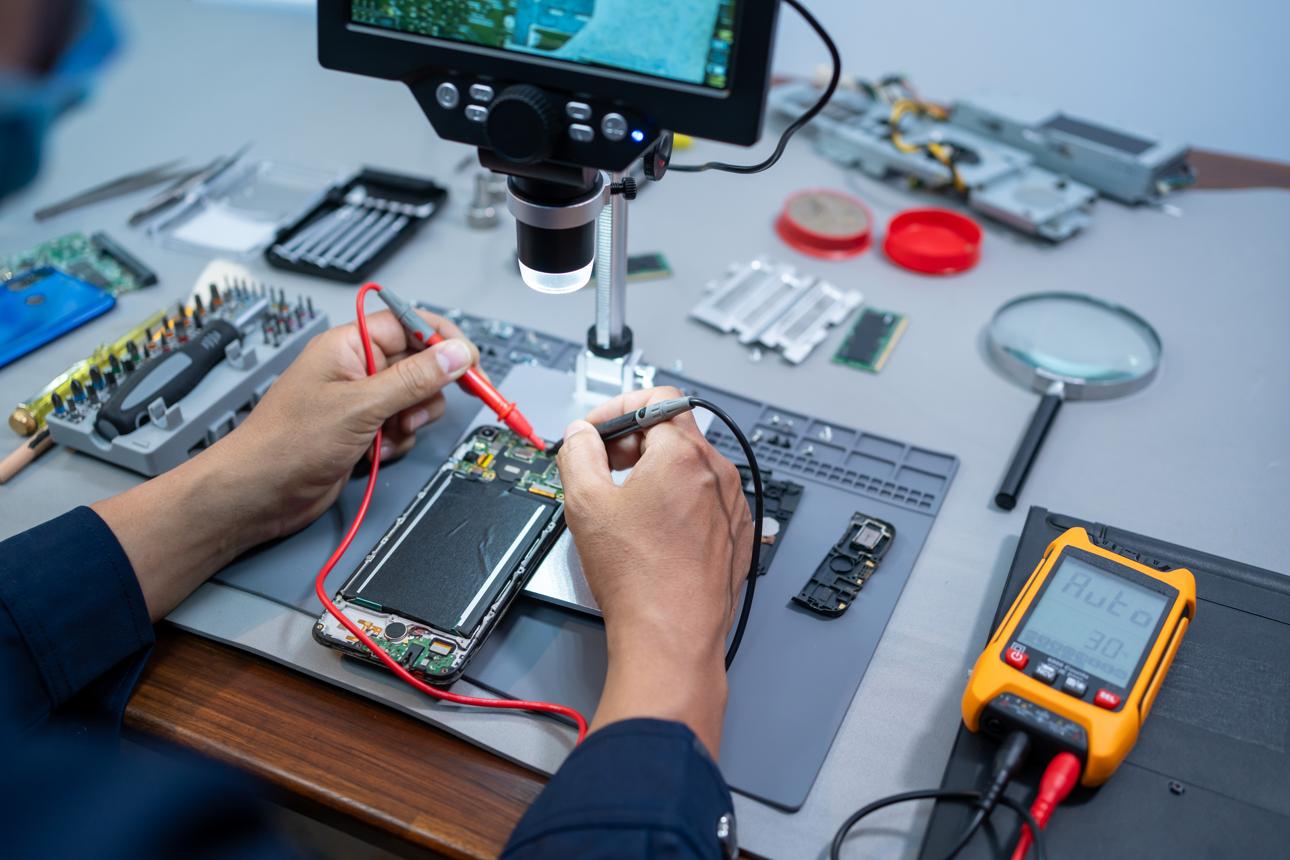

Dead-Boot Motherboard Diagnosis
Investigate a phone that does not power on using visual inspection, resistance and diode testing, power-supply readings, and circuit tracing.
PRACTICAL TASK 02

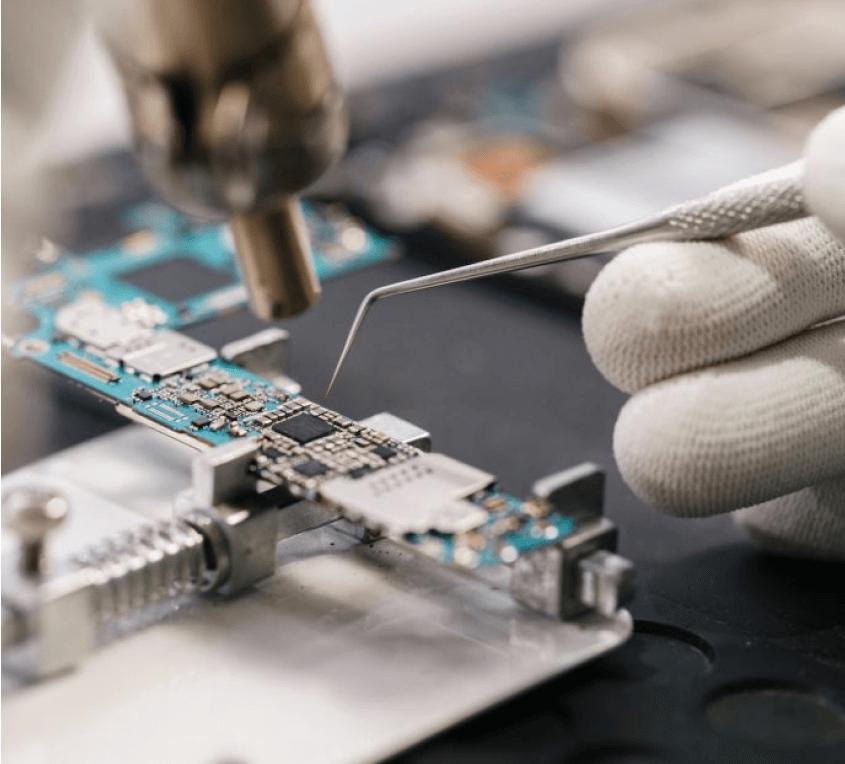

Charging and Power Fault Repair
Examine charging-path components, connectors, and power-related circuits to identify the cause of charging failure.
PRACTICAL TASK 03

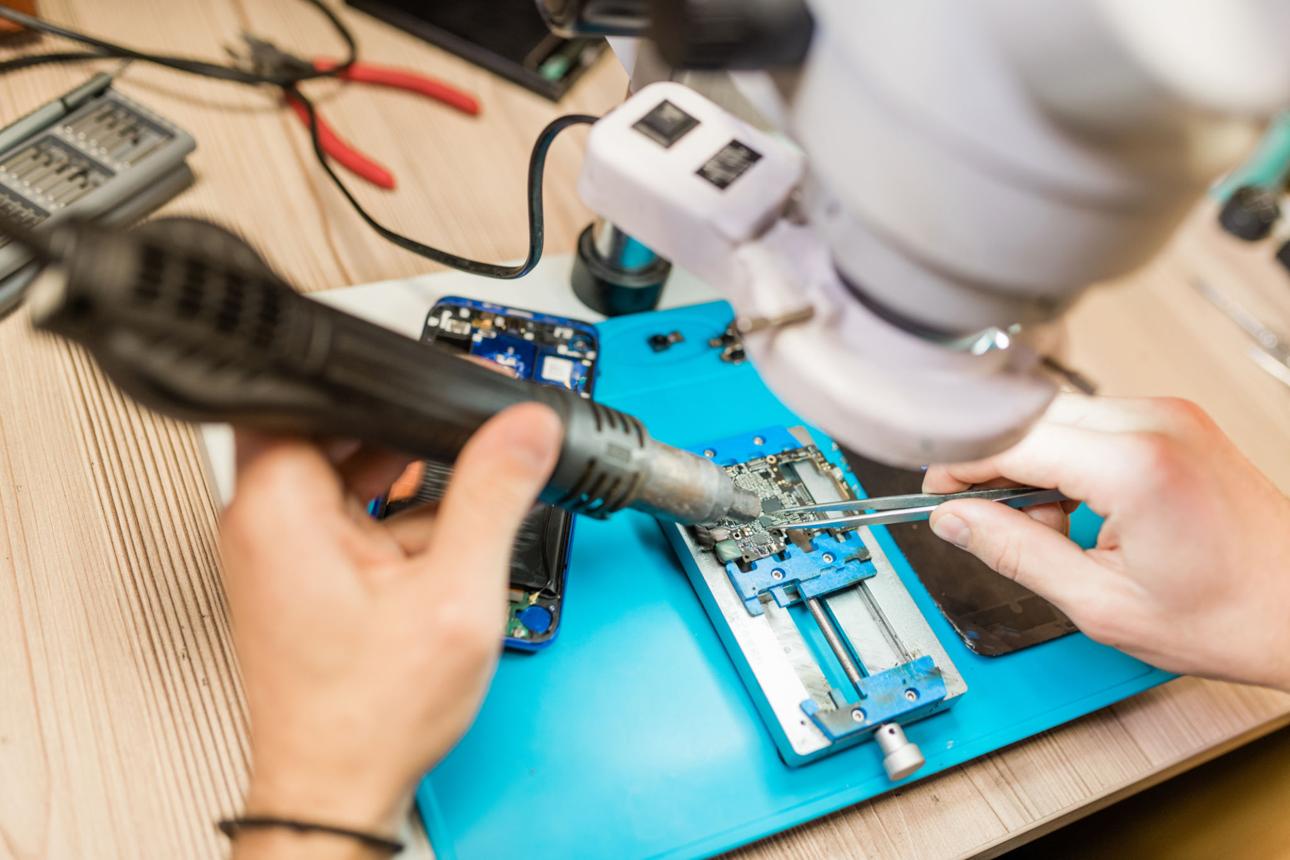

BGA Rework Practice
Practise suitable IC removal, solder-pad preparation, reballing, alignment, and reinstallation on training boards.
PRACTICAL TASK 04

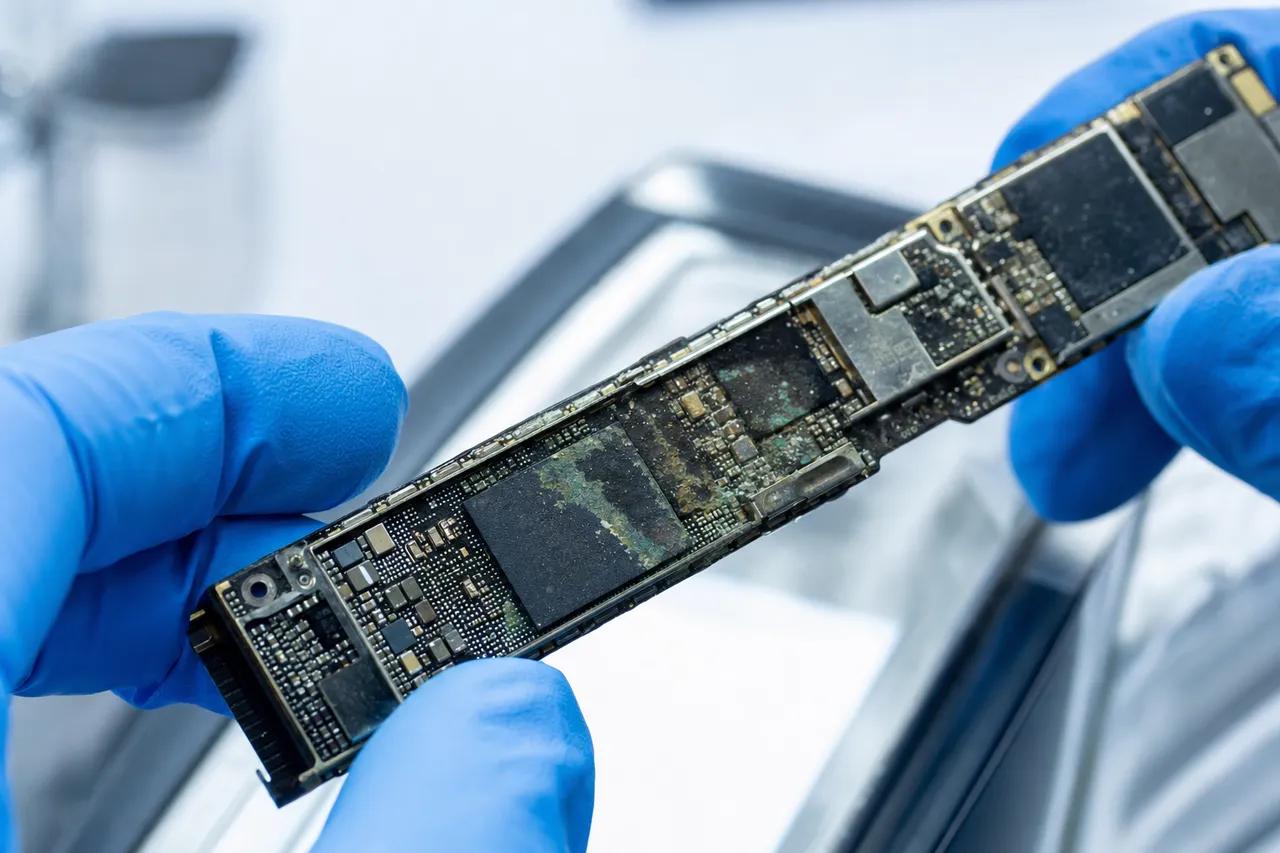

Water-Damage Investigation
Inspect corrosion, identify affected circuit areas, clean the board using appropriate procedures, and test damaged components.
PRACTICAL TASK 05

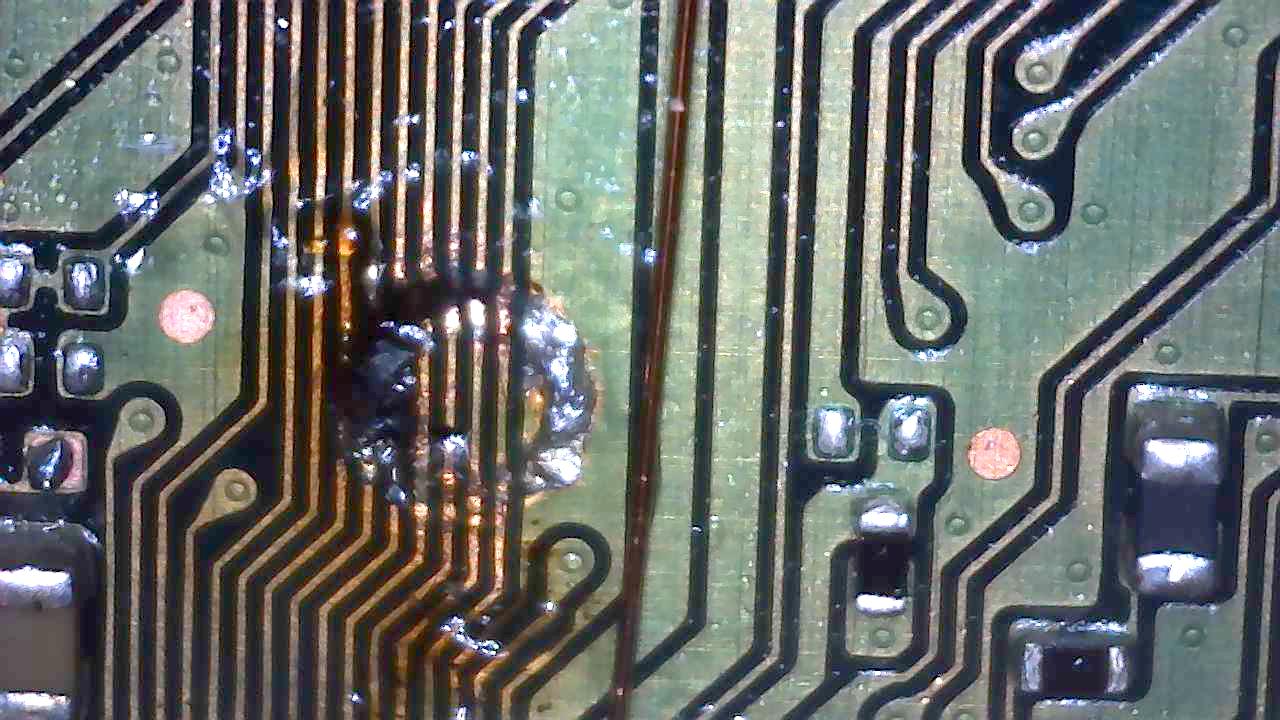

Micro-Jumper and Track Repair
Restore selected broken tracks and damaged solder pads using precision tools and microscope-guided techniques.
PRACTICAL TASK 06

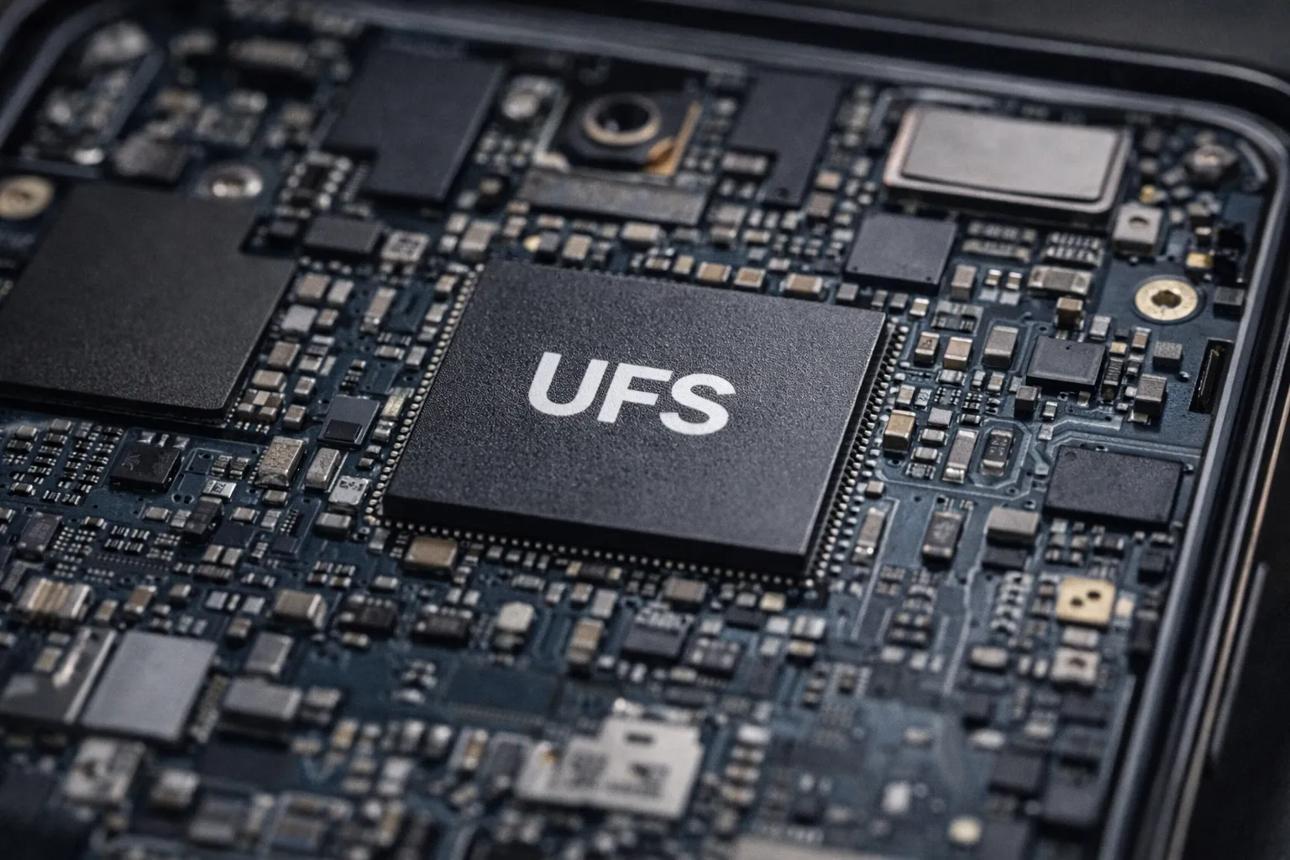

Storage-Circuit Fault Investigation
